How to sign in with MetaMask using Angular

Learn how Moralis authentication works and see how to add secure authentication to your Angular dapp. This tutorial covers how to create full-stack Web3 authentication using the popular Angular framework.

Introduction

This tutorial demonstrates how to create an Angular application that allows users to log in using their Web3 wallets.

After Web3 wallet authentication, the server creates a session cookie with a signed JWT stored inside. It contains session info (such as an address, signed message) in the user's browser.

Once the user is logged in, they will be able to visit a page that displays all their user data.

Prerequisites

  1. Follow the Your First Dapp - Angular tutorial to set up your Angular dapp and server

Install the Required Dependencies

To implement authentication using a Web3 wallet (e.g., MetaMask), we will use a Web3 library. For the tutorial, we will use @wagmi/core.

  1. Install @wagmi/core, ethers, and axios dependencies - @wagmi/[email protected] is a stable version we can use with Angular 14:
npm install @wagmi/[email protected] ethers axios
yarn add @wagmi/[email protected] ethers axios
pnpm add @wagmi/[email protected] ethers axios
  1. Open src/environments/environment.ts - add a variable of SERVER_URL for our server.
export const environment = {
  production: false,
  SERVER_URL: 'http://localhost:3000',
};
  1. We will generate two components (pages) - /signin (to authenticate) and /user (to show the user profile):
ng generate component signin
ng generate component user
  1. Open src/app/app-routing.module.ts, add these two components as routes:
import { SigninComponent } from './signin/signin.component';
import { UserComponent } from './user/user.component';

const routes: Routes = [
  { path: 'signin', component: SigninComponent },
  { path: 'user', component: UserComponent },
];

Initial Setup

We will do an initial setup of our /signin and /user pages to make sure they work before integrating with our server.

  1. Open src/app/signin/signin.component.html and replace the contents with:
<h3>Web3 Authentication</h3>
<button type="button" (click)="handleAuth()">Authenticate via MetaMask</button>
  1. Open src/app/signin/signin.component.ts and add an empty handleAuth function below ngOnInit(): void {}:
ngOnInit(): void {}

async handleAuth() {}
  1. Run npm run start and open http://localhost:4200/signin in your browser. It should look like:

  1. Open src/app/user/user.component.html and replace the contents with:
<div *ngIf="session">
  <h3>User session:</h3>
  <pre>{{ session }}</pre>
  <button type="button" (click)="signOut()">Sign out</button>
</div>
  1. Open src/app/user/user.component.ts and add the variable we used above and an empty signOut() function:
session = '';

ngOnInit(): void {}

async signOut() {}
  1. Open http://localhost:4200/user in your browser. It should look like:

Server Setup

Now we will update our server's index.js for the code we need for authentication. In this demo, cookies will be used for the user data.

  1. Install the required dependencies for our server:
npm install cookie-parser jsonwebtoken dotenv
  1. Create a file called .env in your server's root directory (where package.json is):
  • APP_DOMAIN: RFC 4501 DNS authority that is requesting the signing.
  • MORALIS_API_KEY: You can get it here.
  • ANGULAR_URL: Your app address. By default Angular uses http://localhost:4200.
  • AUTH_SECRET: Used for signing JWT tokens of users. You can put any value here or generate it on https://generate-secret.now.sh/32. Here's an .env example:
APP_DOMAIN=amazing.finance
MORALIS_API_KEY=xxxx
ANGULAR_URL=http://localhost:4200
AUTH_SECRET=1234
  1. Open index.js. We will create a /request-message endpoint for making requests to Moralis.Auth to generate a unique message (Angular will use this endpoint on the /signin page):
// to use our .env variables
require('dotenv').config();

// for our server's method of setting a user session
const cookieParser = require('cookie-parser');
const jwt = require('jsonwebtoken');

const config = {
  domain: process.env.APP_DOMAIN,
  statement: 'Please sign this message to confirm your identity.',
  uri: process.env.ANGULAR_URL,
  timeout: 60,
};

app.post('/request-message', async (req, res) => {
  const { address, chain, network } = req.body;

  try {
    const message = await Moralis.Auth.requestMessage({
      address,
      chain,
      network,
      ...config,
    });

    res.status(200).json(message);
  } catch (error) {
    res.status(400).json({ error: error.message });
    console.error(error);
  }
});
  1. We will create a /verify endpoint for verifying the signed message from the user. After the user successfully verifies, they will be redirected to the /user page where their info will be displayed.
app.post('/verify', async (req, res) => {
  try {
    const { message, signature } = req.body;

    const { address, profileId } = (
      await Moralis.Auth.verify({
        message,
        signature,
        networkType: 'evm',
      })
    ).raw;

    const user = { address, profileId, signature };

    // create JWT token
    const token = jwt.sign(user, process.env.AUTH_SECRET);

    // set JWT cookie
    res.cookie('jwt', token, {
      httpOnly: true,
    });

    res.status(200).json(user);
  } catch (error) {
    res.status(400).json({ error: error.message });
    console.error(error);
  }
});
  1. We will create an /authenticate endpoint for checking the JWT cookie we previously set to allow the user access to the /user page:
app.get('/authenticate', async (req, res) => {
  const token = req.cookies.jwt;
  if (!token) return res.sendStatus(403); // if the user did not send a jwt token, they are unauthorized

  try {
    const data = jwt.verify(token, process.env.AUTH_SECRET);
    res.json(data);
  } catch {
    return res.sendStatus(403);
  }
});
  1. Lastly we will create a /logout endpoint for removing the cookie.
app.get('/logout', async (req, res) => {
  try {
    res.clearCookie('jwt');
    return res.sendStatus(200);
  } catch {
    return res.sendStatus(403);
  }
});

Your final index.js should look like this:

const Moralis = require('moralis').default;

const express = require('express');
const cors = require('cors');
const cookieParser = require('cookie-parser');
const jwt = require('jsonwebtoken');

require('dotenv').config();

const app = express();
const port = 3000;

app.use(express.json());
app.use(cookieParser());

// allow access to Angular app domain
app.use(
  cors({
    origin: process.env.ANGULAR_URL,
    credentials: true,
  })
);

const config = {
  domain: process.env.APP_DOMAIN,
  statement: 'Please sign this message to confirm your identity.',
  uri: process.env.ANGULAR_URL,
  timeout: 60,
};

// request message to be signed by client
app.post('/request-message', async (req, res) => {
  const { address, chain, network } = req.body;

  try {
    const message = await Moralis.Auth.requestMessage({
      address,
      chain,
      network,
      ...config,
    });

    res.status(200).json(message);
  } catch (error) {
    res.status(400).json({ error: error.message });
    console.error(error);
  }
});

// verify message signed by client
app.post('/verify', async (req, res) => {
  try {
    const { message, signature } = req.body;

    const { address, profileId } = (
      await Moralis.Auth.verify({
        message,
        signature,
        networkType: 'evm',
      })
    ).raw;

    const user = { address, profileId, signature };

    // create JWT token
    const token = jwt.sign(user, process.env.AUTH_SECRET);

    // set JWT cookie
    res.cookie('jwt', token, {
      httpOnly: true,
    });

    res.status(200).json(user);
  } catch (error) {
    res.status(400).json({ error: error.message });
    console.error(error);
  }
});

// verify JWT cookie to allow access
app.get('/authenticate', async (req, res) => {
  const token = req.cookies.jwt;
  if (!token) return res.sendStatus(403); // if the user did not send a jwt token, they are unauthorized

  try {
    const data = jwt.verify(token, process.env.AUTH_SECRET);
    res.json(data);
  } catch {
    return res.sendStatus(403);
  }
});

// remove JWT cookie
app.get('/logout', async (req, res) => {
  try {
    res.clearCookie('jwt');
    return res.sendStatus(200);
  } catch {
    return res.sendStatus(403);
  }
});

const startServer = async () => {
  await Moralis.start({
    apiKey: process.env.MORALIS_API_KEY,
  });

  app.listen(port, () => {
    console.log(`Example app listening on port ${port}`);
  });
};

startServer();

  1. Run npm run start to make sure your server runs without immediate errors.

Bringing It All Together

Now we will finish setting up our Angular pages to integrate with our server.

  1. Open src/app/signin/signin.component.ts. Add our required imports:
// for navigating to other routes
import { Router } from '@angular/router';

// for making HTTP requests
import axios from 'axios';

import { getDefaultProvider } from 'ethers';
import {
  createClient,
  connect,
  disconnect,
  getAccount,
  signMessage,
  InjectedConnector,
} from '@wagmi/core';

import { environment } from '../../environments/environment';
  1. Add this code to set up the Wagmi client:
const client = createClient({
  autoConnect: true,
  provider: getDefaultProvider(),
});
  1. Replace our empty handleAuth() function with the following:
async handleAuth() {
    const { isConnected } = getAccount();

    if (isConnected) await disconnect(); //disconnects the web3 provider if it's already active

    const provider = await connect({ connector: new InjectedConnector() }); // enabling the web3 provider metamask

    const userData = {
      address: provider.account,
      chain: provider.chain.id,
      network: 'evm',
    };

    const { data } = await axios.post(
      `${environment.SERVER_URL}/request-message`,
      userData
    );

    const message = data.message;

    const signature = await signMessage({ message });

    await axios.post(
      `${environment.SERVER_URL}/verify`,
      {
        message,
        signature,
      },
      { withCredentials: true } // set cookie from Express server
    );

    // redirect to /user
    this.router.navigateByUrl('/user');
  }
  1. Open src/app/user/user.component.ts. Add our required imports:
import { Router } from '@angular/router';

import axios from 'axios';

import { environment } from '../../environments/environment';
  1. Replace ngOnInit(): void {} with:
async ngOnInit() {
  try {
    const { data } = await axios.get(
      `${environment.SERVER_URL}/authenticate`,
      {
        withCredentials: true,
      }
    );

    const { iat, ...authData } = data; // remove unimportant iat value

    this.session = JSON.stringify(authData, null, 2); // format to be displayed nicely
  } catch (err) {
    // if user does not have a "session" token, redirect to /signin
    this.router.navigateByUrl('/signin');
  }
}
  1. Replace our empty signOut() function with the following:
async signOut() {
  await axios.get(`${environment.SERVER_URL}/logout`, {
    withCredentials: true,
  });
  this.router.navigateByUrl('/signin');
}

If you get errors related to default imports, open your tsconfig.app.json file and add "allowSyntheticDefaultImports": true under compilerOptions:

"compilerOptions": {
  "allowSyntheticDefaultImports": true,
  "outDir": "./out-tsc/app",
  "types": []
}

Testing the MetaMask Wallet Connector

Visit http://localhost:4200/signin to test the authentication.

  1. Click on the Authenticate via MetaMask button:

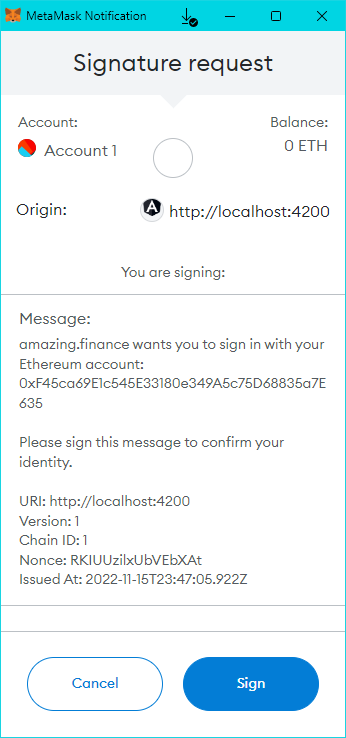

  1. Connect the MetaMask wallet and sign the message:
Signing the MessageSigning the Message

Signing the Message

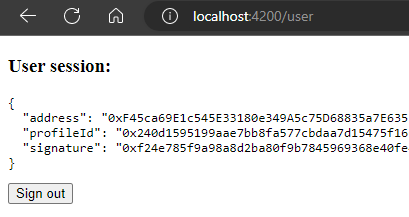

  1. After successful authentication, you will be redirected to the /user page:
User PageUser Page

User Page

  • When a user authenticates, we show the user's info on the page.
  • When a user is not authenticated, we redirect to the /signin page.
  • When a user is authenticated, we show the user's info on the page, even refreshing after the page.
